Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Kota | Jakarta, Tangerang, Banten, Bekasi, Bogor |

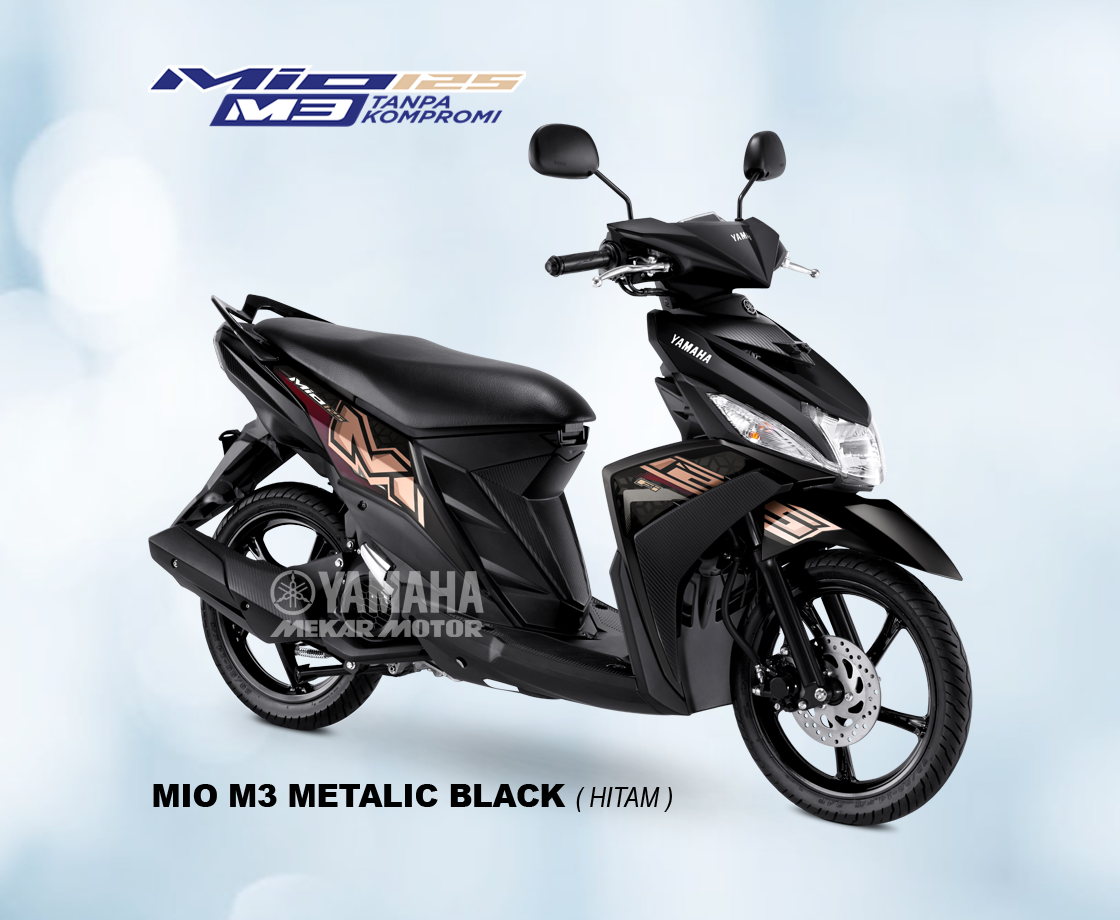

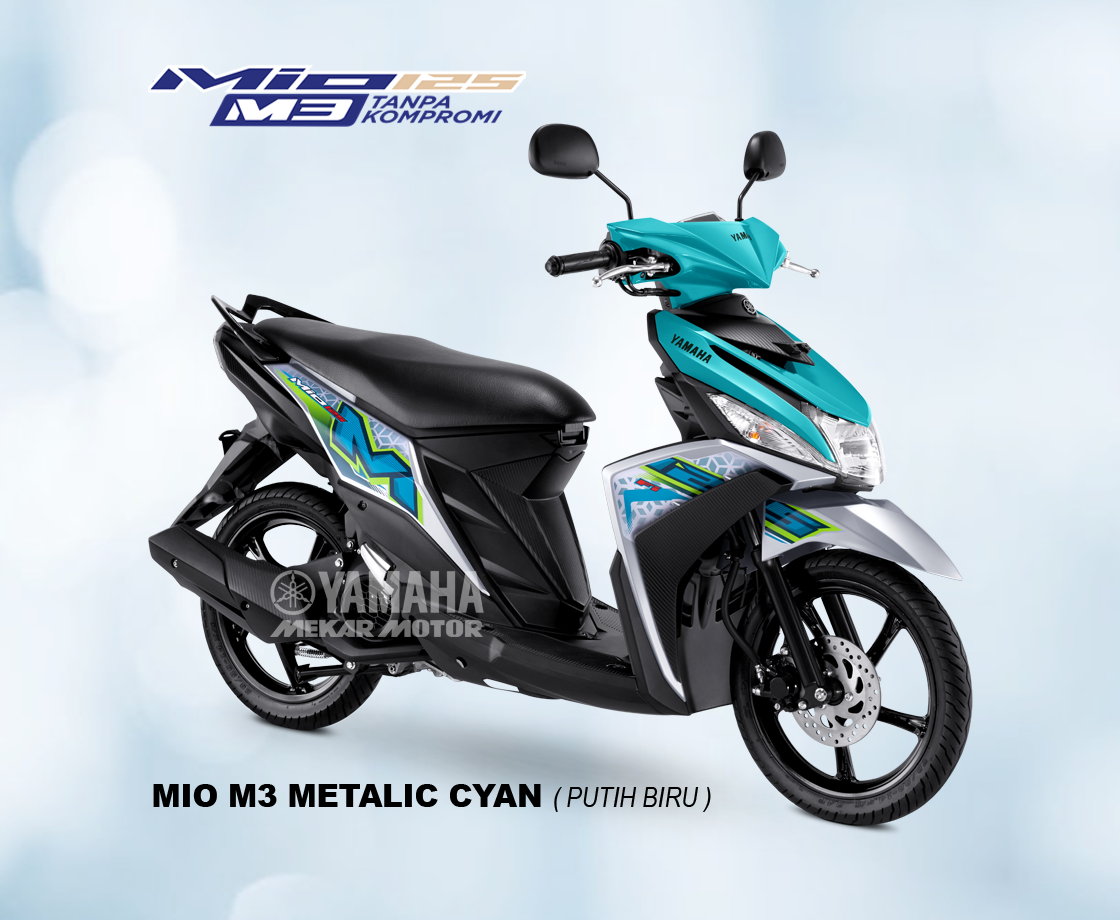

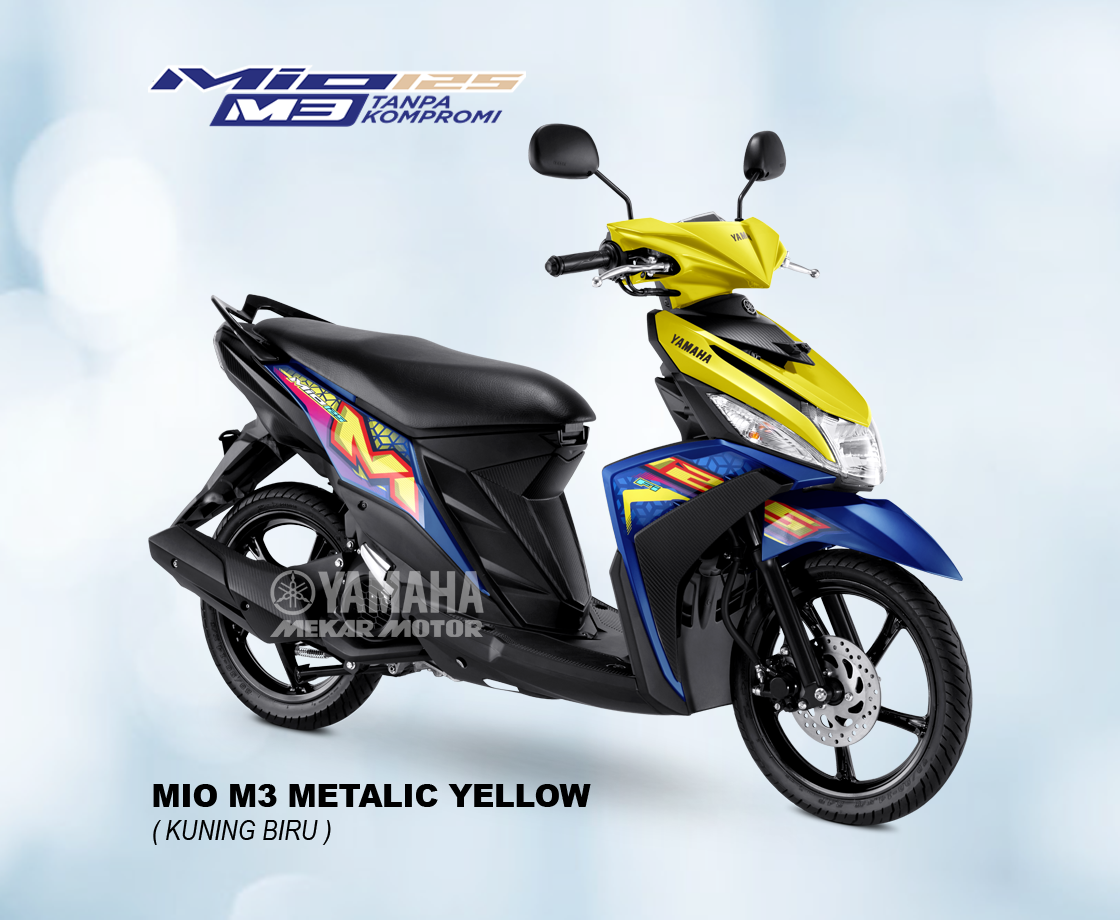

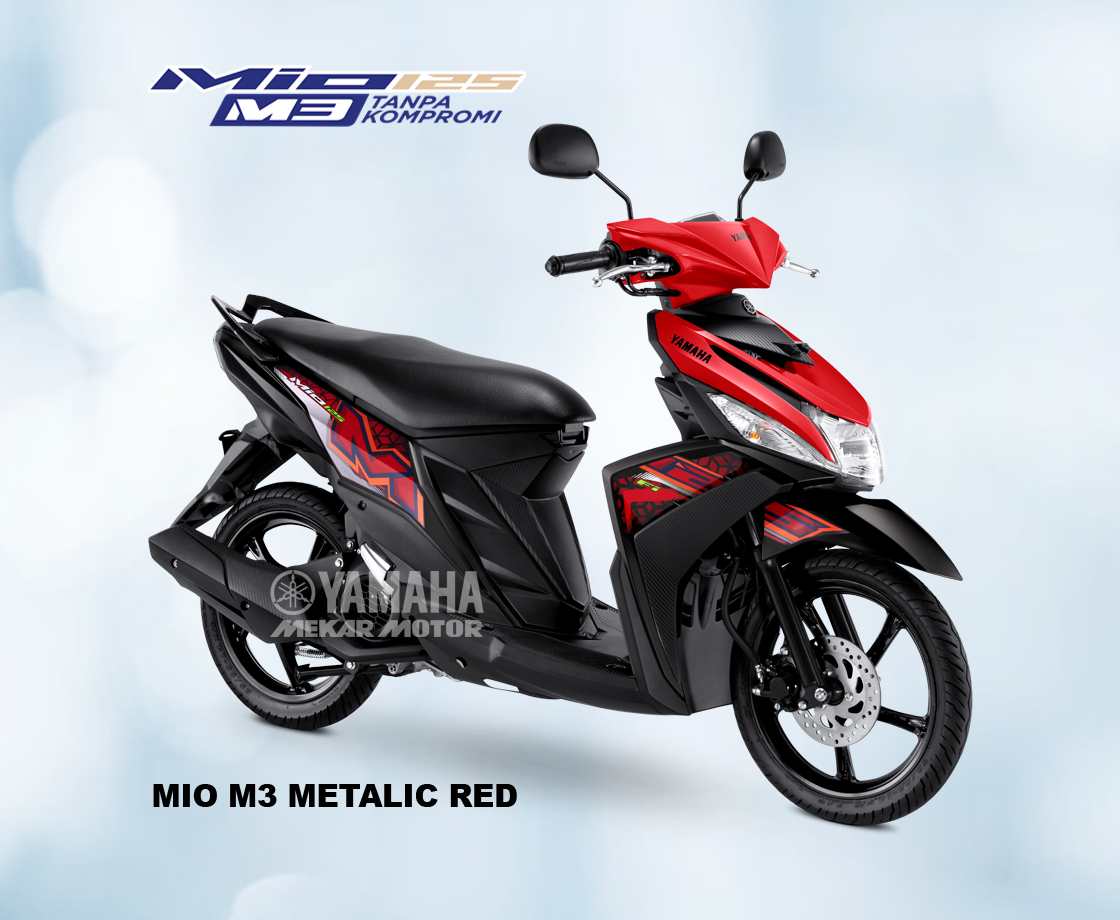

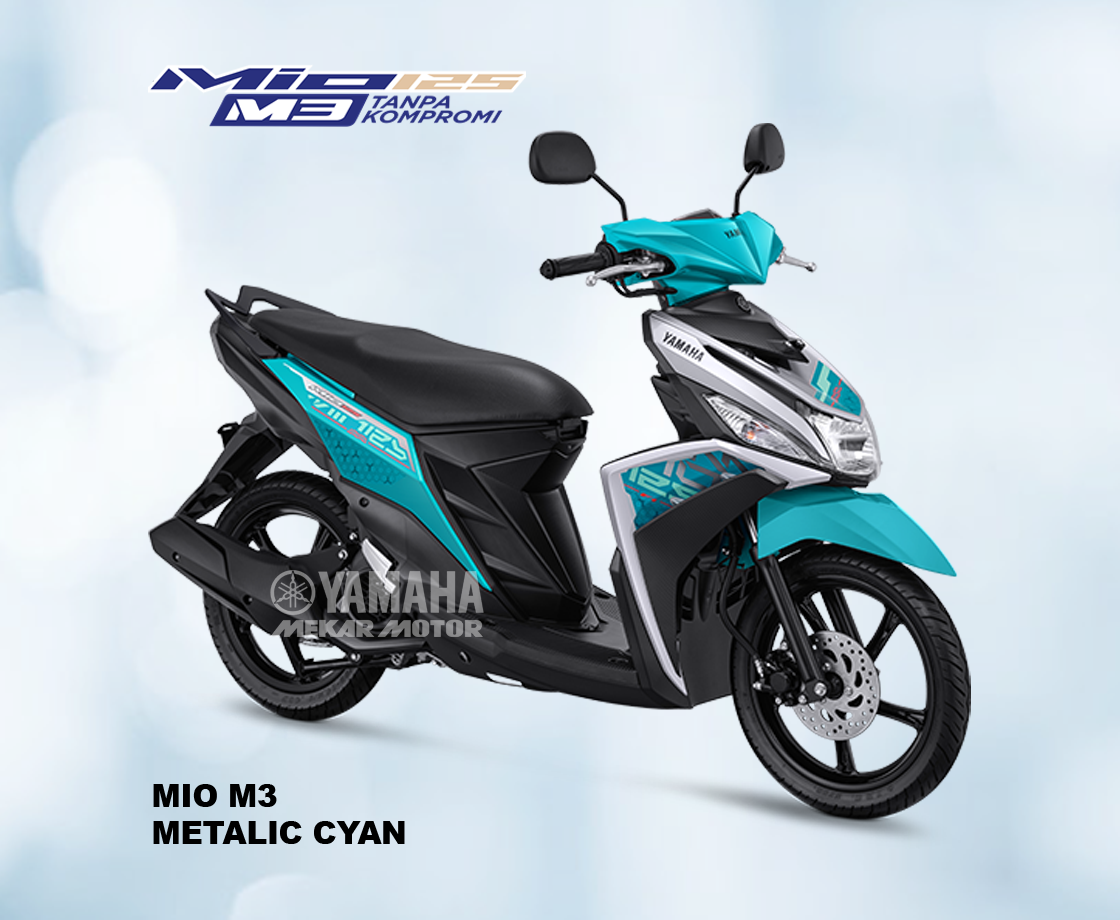

| Warna | Metallic Cyan, Metallic Yellow, Metallic Red, Metallic Black |

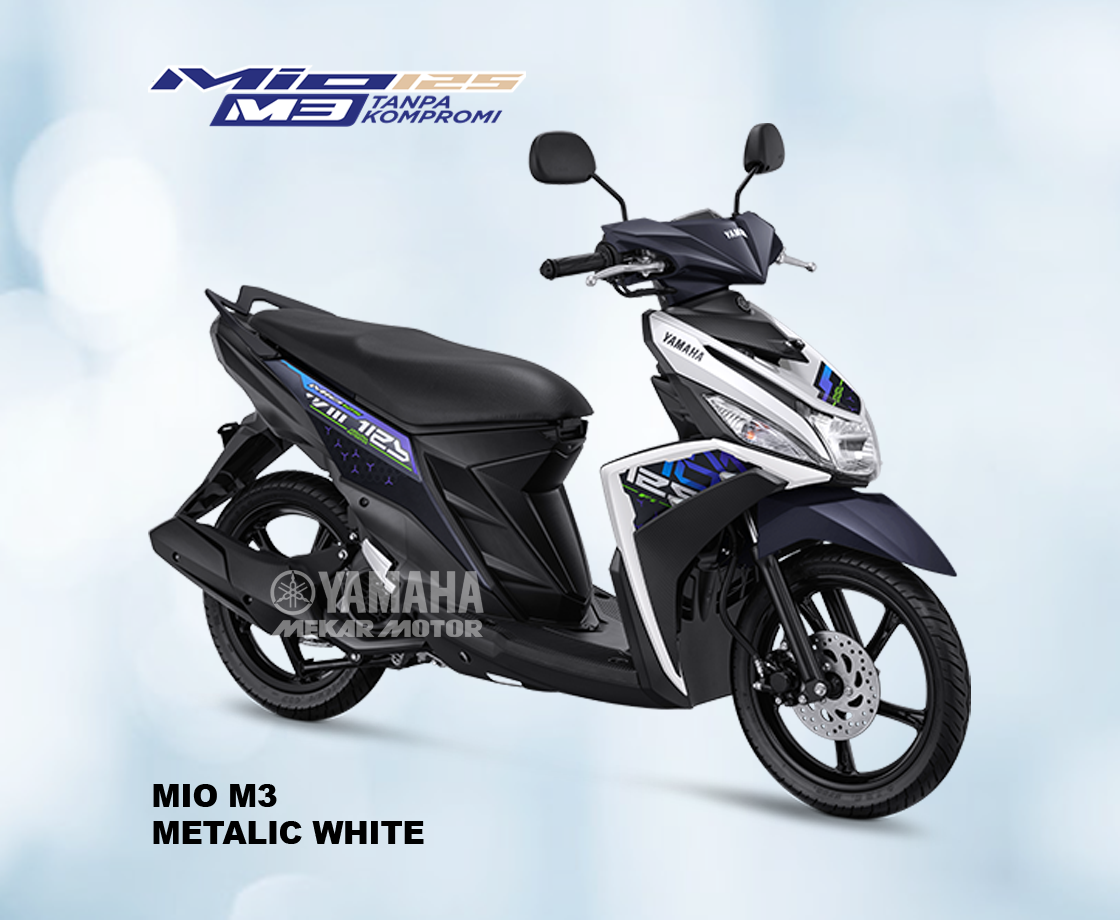

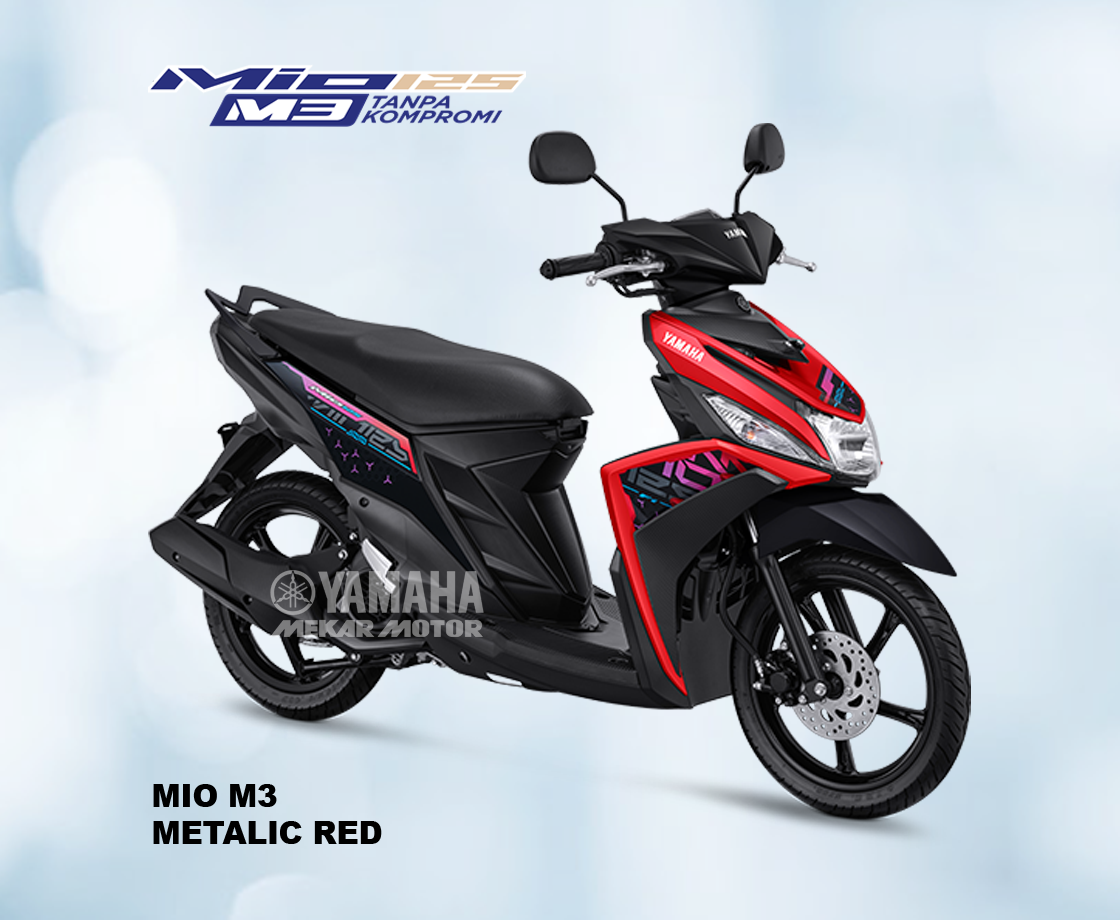

MIO M3 125
Rp 18.305.000
TANPA KOMPROMI
Semakin Irit, Semakin Praktis, Semakin Trendi
Spesifikasi Detail:
MESIN
| Volume Silinder | 124.96 cc |
| Daya Maksimum | 7,0 kW / 8000 rpm |
| Torsi Maksimum | 9,5 Nm / 5500 rpm |
| Sistem Starter | Electric & Kick Starter |
| Sistem Pelumasan | Pelumasan Basah |
| Kapasitas Oli Mesin | Assembly = 0,84L ; Berkala = 0,80 L |
| Sistem Bahan Bakar | Fuel Injection |
| Tipe Kopling | Kopling Sentrifugal, Kering |
| Tipe Transmisi | V-Belt Otomatis |
| Tipe Mesin | Berpendingin udara, 4 Langkah, SOHC |
| Susunan Silinder | Silinder Tunggal |
| Diameter x Langkah | 52,4 x 57,9 mm |
| Perbandingan Kompresi | 9,5 : 1 |
DIMENSI
| Berat Isi | 96 Kg (Tipe S) ; 95 Kg (Tipe Standard) |
| Kapasitas Tangki Bensin | 4,2 L |
| Jarak Terendah ke Tanah | 135 mm |
| P x L x T | 1870 mm X 685 mm X 1060 mm |
| Jarak Sumbu Roda | 1260 mm |
| Tinggi Tempat Duduk | 750 mm |
RANGKA
| Tipe Rangka | Underbone |
| Suspensi Depan | Teleskopik |
| Suspensi Belakang | Unit Swing |
| Ban Depan | 80/80-14M/C (43P) |
| Ban Belakang | 100/70-14M/C (51P) |
| Rem Depan | Rem Cakram |
| Rem Belakang | Rem Tromol |
KELISTRIKAN
| Sistem Pengapian | TCI |
| Battery | YTZ6V (Tipe S) ; YTZ4V/GTZ4V/NTZ4V (Tipe Standard) |
| Tipe Busi | NGK/CR6HSA |
